In this tutorial, we dive into the cutting edge of agentic AI by building a “Zettelkasten” memory system, a “living” architecture that organizes information like the human brain. We go beyond standard retrieval methods to build a dynamic knowledge graph where an agent autonomously decomposes input into atomic facts, links them semantically, and even “sleeps” to consolidate memories into higher-order insights. Using Google’s Gemini, we implement a robust solution that addresses real-world API constraints, ensuring that our agent stores data and also proactively understands the evolving context of our projects. check it out full code here,
!pip install -q -U google-generativeai networkx pyvis scikit-learn numpy
import os
import json
import uuid
import time
import getpass
import random
import networkx as nx
import numpy as np
import google.generativeai as genai
from dataclasses import dataclass, field
from typing import List
from sklearn.metrics.pairwise import cosine_similarity
from IPython.display import display, HTML
from pyvis.network import Network
from google.api_core import exceptions

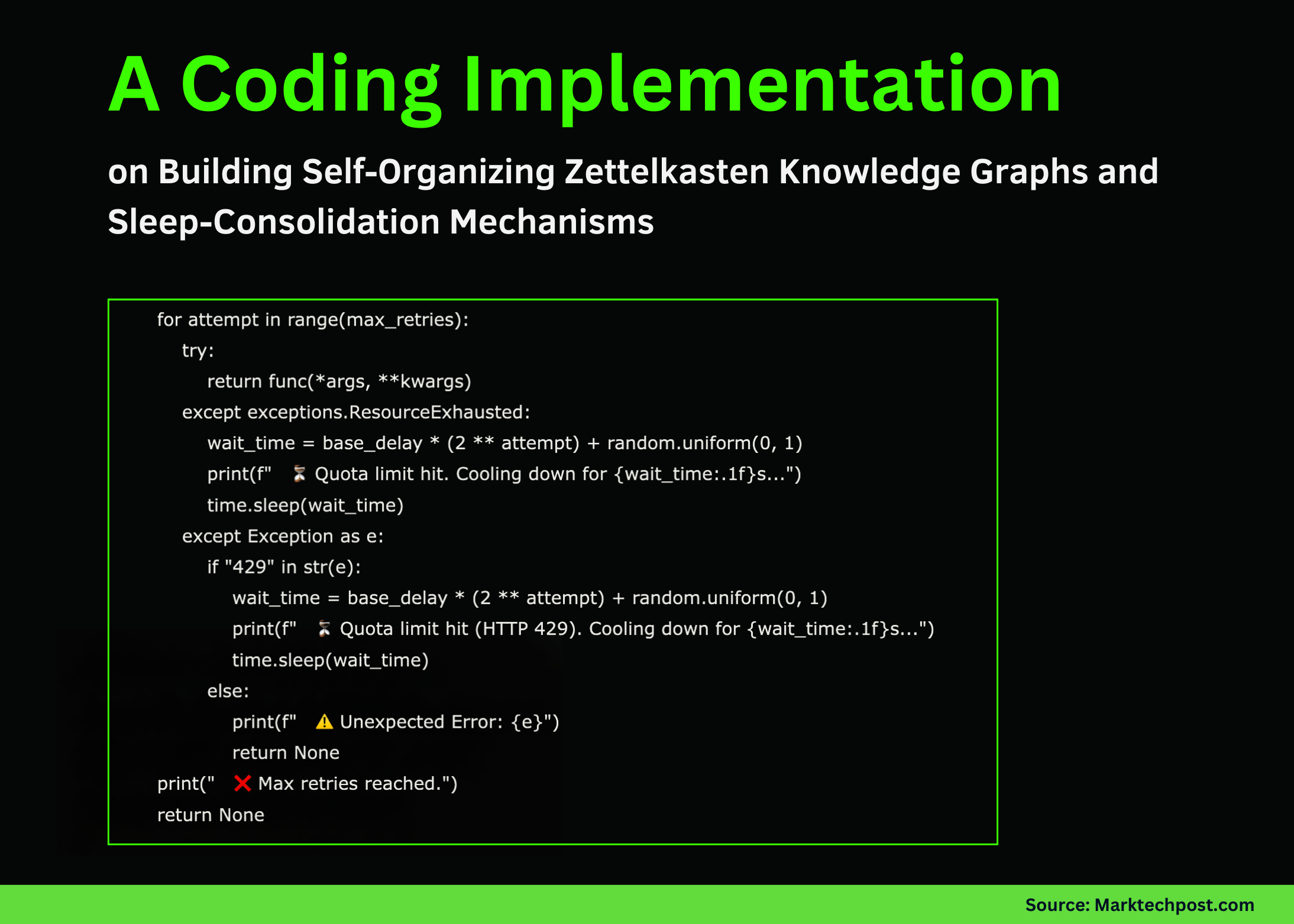

def retry_with_backoff(func, *args, **kwargs):
max_retries = 5
base_delay = 5
for attempt in range(max_retries):
try:
return func(*args, **kwargs)
except exceptions.ResourceExhausted:
wait_time = base_delay * (2 ** attempt) + random.uniform(0, 1)
print(f" ⏳ Quota limit hit. Cooling down for {wait_time:.1f}s...")
time.sleep(wait_time)
except Exception as e:
if "429" in str(e):
wait_time = base_delay * (2 ** attempt) + random.uniform(0, 1)
print(f" ⏳ Quota limit hit (HTTP 429). Cooling down for {wait_time:.1f}s...")
time.sleep(wait_time)
else:
print(f" ⚠️ Unexpected Error: {e}")
return None
print(" ❌ Max retries reached.")
return None
print("Enter your Google AI Studio API Key (Input will be hidden):")
API_KEY = getpass.getpass()
genai.configure(api_key=API_KEY)
MODEL_NAME = "gemini-2.5-flash"
EMBEDDING_MODEL = "models/text-embedding-004"
print(f"✅ API Key configured. Using model: {MODEL_NAME}")We start by importing the libraries needed for graph management and AI model interactions while securing our API key inputs. Importantly, we define a robust retry_with_backoff function that automatically handles rate limit errors, ensuring that our agent gracefully stops and recovers when the API quota is exceeded during heavy processing. check it out full code here,
@dataclass
class MemoryNode:
id: str
content: str
type: str
embedding: List(float) = field(default_factory=list)
timestamp: int = 0
class RobustZettelkasten:
def __init__(self):
self.graph = nx.Graph()
self.model = genai.GenerativeModel(MODEL_NAME)
self.step_counter = 0
def _get_embedding(self, text):
result = retry_with_backoff(
genai.embed_content,
model=EMBEDDING_MODEL,
content=text
)
return result('embedding') if result else (0.0) * 768We define a fundamental MemoryNode structure to house its contents, types, and vector embeddings in an organized data class. We then initialize the main RobustZatellkasten class, set up the network graph, and configure the Gemini embedding model that serves as the backbone of our semantic search capabilities. check it out full code here,
def _atomize_input(self, text):
prompt = f"""
Break the following text into independent atomic facts.
Output JSON: {{ "facts": ("fact1", "fact2") }}
Text: "{text}"
"""
response = retry_with_backoff(
self.model.generate_content,
prompt,
generation_config={"response_mime_type": "application/json"}
)
try:
return json.loads(response.text).get("facts", ()) if response else (text)
except:
return (text)
def _find_similar_nodes(self, embedding, top_k=3, threshold=0.45):
if not self.graph.nodes: return ()
nodes = list(self.graph.nodes(data=True))
embeddings = (n(1)('data').embedding for n in nodes)
valid_embeddings = (e for e in embeddings if len(e) > 0)
if not valid_embeddings: return ()
sims = cosine_similarity((embedding), embeddings)(0)
sorted_indices = np.argsort(sims)(::-1)
results = ()
for idx in sorted_indices(:top_k):
if sims(idx) > threshold:
results.append((nodes(idx)(0), sims(idx)))
return results
def add_memory(self, user_input):
self.step_counter += 1
print(f"n🧠 (Step {self.step_counter}) Processing: "{user_input}"")
facts = self._atomize_input(user_input)
for fact in facts:
print(f" -> Atom: {fact}")
emb = self._get_embedding(fact)
candidates = self._find_similar_nodes(emb)
node_id = str(uuid.uuid4())(:6)
node = MemoryNode(id=node_id, content=fact, type="fact", embedding=emb, timestamp=self.step_counter)
self.graph.add_node(node_id, data=node, title=fact, label=fact(:15)+"...")
if candidates:
context_str = "n".join((f"ID {c(0)}: {self.graph.nodes(c(0))('data').content}" for c in candidates))
prompt = f"""
I am adding: "{fact}"
Existing Memory:
{context_str}
Are any of these directly related? If yes, provide the relationship label.
JSON: {{ "links": ({{ "target_id": "ID", "rel": "label" }}) }}
"""
response = retry_with_backoff(
self.model.generate_content,
prompt,
generation_config={"response_mime_type": "application/json"}
)
if response:
try:
links = json.loads(response.text).get("links", ())
for link in links:
if self.graph.has_node(link('target_id')):
self.graph.add_edge(node_id, link('target_id'), label=link('rel'))
print(f" 🔗 Linked to {link('target_id')} ({link('rel')})")
except:
pass
time.sleep(1)We build an ingestion pipeline that decomposes complex user input into atomic facts to prevent information loss. We immediately embed these facts and use our agent to recognize existing nodes and create semantic links, effectively creating a knowledge graph in real time that mimics associative memory. check it out full code here,
def consolidate_memory(self):
print(f"n💤 (Consolidation Phase) Reflecting...")
high_degree_nodes = (n for n, d in self.graph.degree() if d >= 2)
processed_clusters = set()
for main_node in high_degree_nodes:
neighbors = list(self.graph.neighbors(main_node))
cluster_ids = tuple(sorted((main_node) + neighbors))
if cluster_ids in processed_clusters: continue
processed_clusters.add(cluster_ids)
cluster_content = (self.graph.nodes(n)('data').content for n in cluster_ids)
prompt = f"""
Generate a single high-level insight summary from these facts.
Facts: {json.dumps(cluster_content)}
JSON: {{ "insight": "Your insight here" }}
"""
response = retry_with_backoff(
self.model.generate_content,
prompt,
generation_config={"response_mime_type": "application/json"}
)
if response:
try:
insight_text = json.loads(response.text).get("insight")
if insight_text:
insight_id = f"INSIGHT-{uuid.uuid4().hex(:4)}"
print(f" ✨ Insight: {insight_text}")
emb = self._get_embedding(insight_text)
insight_node = MemoryNode(id=insight_id, content=insight_text, type="insight", embedding=emb)
self.graph.add_node(insight_id, data=insight_node, title=f"INSIGHT: {insight_text}", label="INSIGHT", color="#ff7f7f")
self.graph.add_edge(insight_id, main_node, label="abstracted_from")
except:
continue
time.sleep(1)
def answer_query(self, query):
print(f"n🔍 Querying: "{query}"")
emb = self._get_embedding(query)
candidates = self._find_similar_nodes(emb, top_k=2)
if not candidates:
print("No relevant memory found.")
return
relevant_context = set()
for node_id, score in candidates:
node_content = self.graph.nodes(node_id)('data').content
relevant_context.add(f"- {node_content} (Direct Match)")
for n1 in self.graph.neighbors(node_id):
rel = self.graph(node_id)(n1).get('label', 'related')
content = self.graph.nodes(n1)('data').content
relevant_context.add(f" - linked via '{rel}' to: {content}")
context_text = "n".join(relevant_context)
prompt = f"""
Answer based ONLY on context.
Question: {query}
Context:
{context_text}
"""
response = retry_with_backoff(self.model.generate_content, prompt)
if response:
print(f"🤖 Agent Answer:n{response.text}")We implement the cognitive functions of our agent, enabling it to “sleep” and consolidate dense memory clusters into higher-order insights. We also define query logic that traverses these connected paths, allowing the agent to reason over multiple hops in the graph to answer complex questions. check it out full code here,
def show_graph(self):
try:
net = Network(notebook=True, cdn_resources="remote", height="500px", width="100%", bgcolor="#222222", font_color="white")
for n, data in self.graph.nodes(data=True):
color = "#97c2fc" if data('data').type == 'fact' else "#ff7f7f"
net.add_node(n, label=data.get('label', ''), title=data('data').content, color=color)
for u, v, data in self.graph.edges(data=True):
net.add_edge(u, v, label=data.get('label', ''))
net.show("memory_graph.html")
display(HTML("memory_graph.html"))
except Exception as e:
print(f"Graph visualization error: {e}")
brain = RobustZettelkasten()
events = (
"The project 'Apollo' aims to build a dashboard for tracking solar panel efficiency.",
"We chose React for the frontend because the team knows it well.",
"The backend must be Python to support the data science libraries.",
"Client called. They are unhappy with React performance on low-end devices.",
"We are switching the frontend to Svelte for better performance."
)
print("--- PHASE 1: INGESTION ---")
for event in events:
brain.add_memory(event)
time.sleep(2)
print("--- PHASE 2: CONSOLIDATION ---")
brain.consolidate_memory()
print("--- PHASE 3: RETRIEVAL ---")
brain.answer_query("What is the current frontend technology for Apollo and why?")
print("--- PHASE 4: VISUALIZATION ---")
brain.show_graph()We conclude by adding a visualization method that generates an interactive HTML graph of our agent’s memory, allowing us to inspect nodes and edges. Finally, we execute a test scenario involving a project timeline to verify that our system correctly connects concepts, generates insights, and retrieves the correct context.
Finally, we now have a fully functional “living memory” prototype that surpasses simple database storage. By enabling our agent to actively connect related concepts and reflect on her experiences during the “consolidation” phase, we solve the critical problem of fragmented context in long-running AI interactions. This system shows that true intelligence requires processing power and a structured, evolved memory, paving the way for us to build more capable, personalized autonomous agents.
